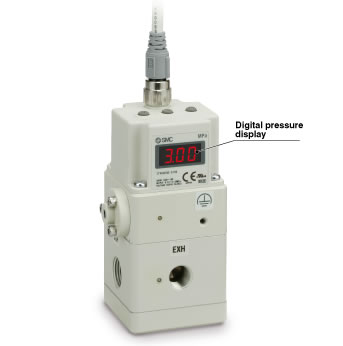

5.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVX

Description

・Stepless control of air pressure proportional to electrical signals
・Maximum supply pressure: 5.0 MPa
・Set pressure range: 0.01 to 3.0 MPa
・Maximum flow rate: 3000 L/min (ANR)
・Fluid: Air, N₂, O₂, Ar
・Wetted parts: Fluorine grease

Other Data :
> Safety Instructions
> F.R.L. Units/Precautions
> Series Variations/Pressure Control Equipment
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: Products List, Electro-Pneumatic Regulators, Modular F.R.L. ⁄ Pressure Control Equipment

Technical Data
Features

Technical Data

Features

■Stepless control of air pressure proportional to an electrical signal

Maximum supply pressure ： 5.0 MPa
Set pressure range ： 0.01 to 3.0 MPa
Maximum flow rate ： 3000L/min（ANR）*

* Supply pressure: 5.0 MPa Set pressure: 3.0 MPa

Fluid ： Air, N2, O2*, Ar

* When using O2, refer to “Fluid Supply” on page 865.

Wetted parts : Fluorine grease
Power consumption ： 3 W or less

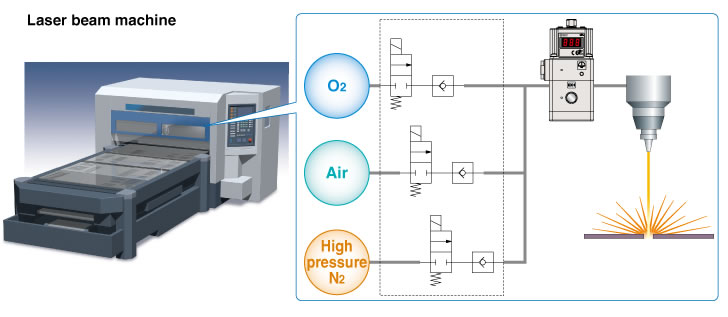

■Application example
