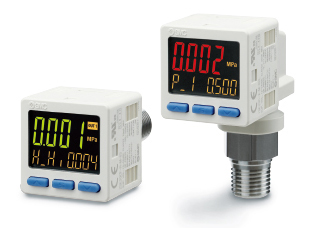

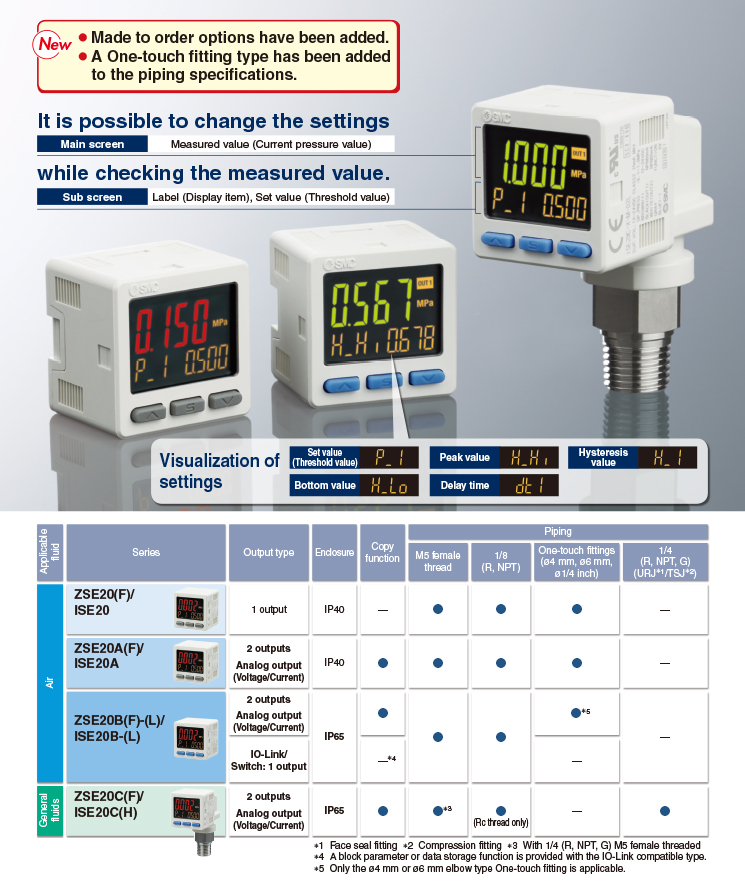

・Visualization of settings
・Simple 3-step setting
・Easy screen switching
It is possible to change the settings while checking the measured value.
・Delay time:1.5 ms or less
・Current consumption: 25 mA or less
Other Data :
> Safety Instructions
> Pressure Switches/Flow Switches/Precautions
> Pressure Switch Series Variations/Application Example
> Glossary of Terms/Technical Information
> Green Procurement (RoHS)

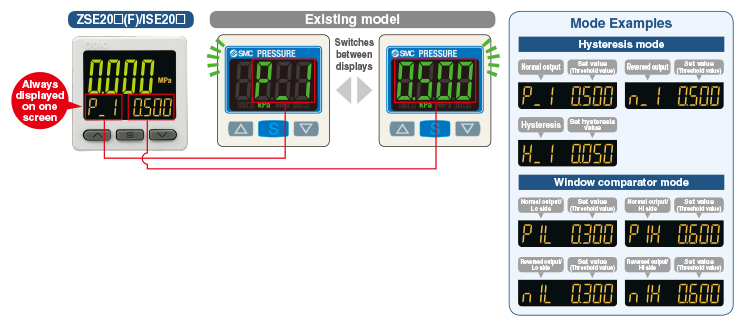

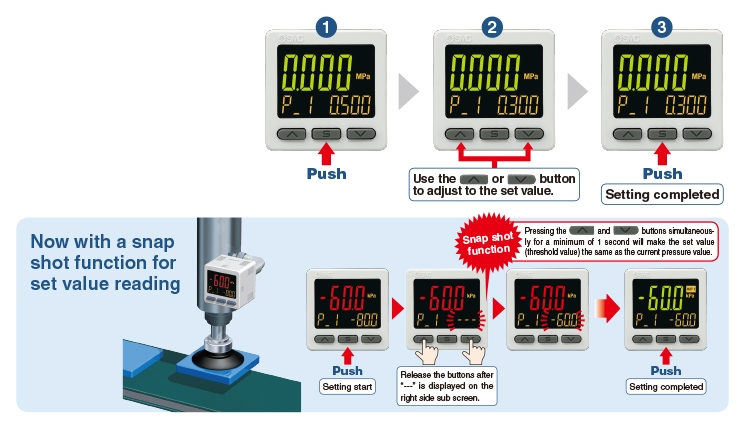

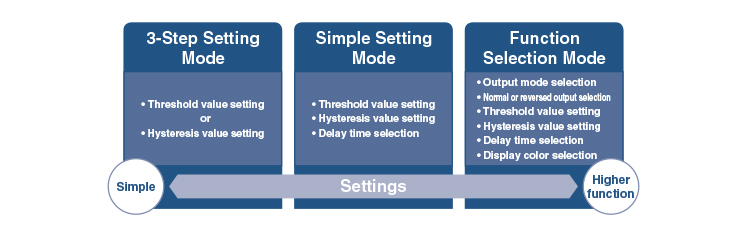

■Simple 3-Step Settings
When the S button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the S button is pressed and the hysteresis (H_1) is being displayed, the hysteresis value can be set.

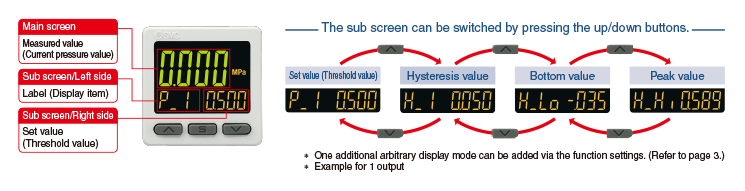

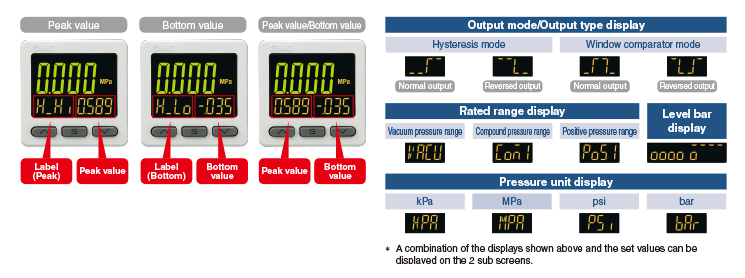

■Other Sub Screen Display
The peak value or bottom value, or both values can be displayed on one screen!
* Peak and bottom values are maintained even if the power supply is cut.
■Delay Time: 1.5 ms*1 or less
* 1 Select from 1.5 ms or less, 20 ms, 100 ms, 500 ms, 1000 ms, 2000 ms, or 5000 ms.

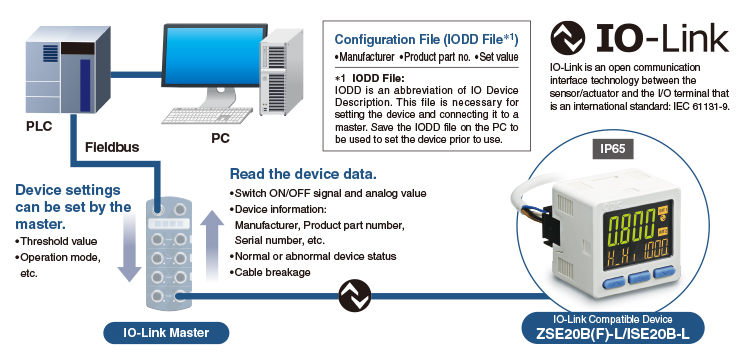

■IO-Link Compatible ZSE20B(F)-L/ISE20B-L
Visualization of operation/equipment status/Remote monitoring and control by communication

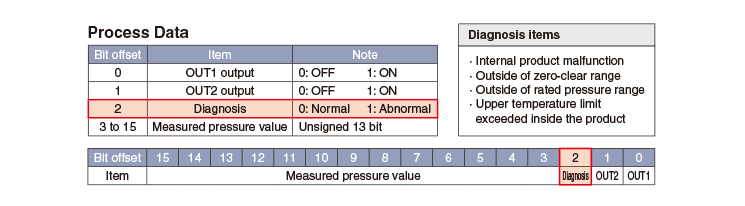

Implement diagnostic bits in the process data.
The diagnostic bit in the cyclic process data makes it easy to find problems with the equipment.
It is possible to find problems with the equipment in real time using the cyclic (periodic) data and to monitor such problems in detail with the noncyclic (aperiodic) data.

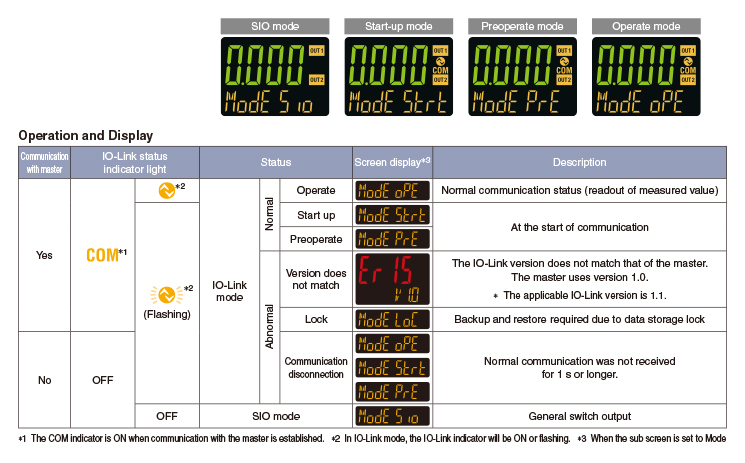

Displays the output communication status and indicates the presence of communication data
■For General Fluids ZSE20C(F)/ISE20C(H)
● Stainless diaphragm

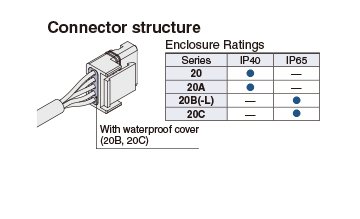

● Enclosure: IP65
<Face seal and compression fitting>
<Threaded type (R, Rc, NPT, G)>
* The grease-free specification does not intentionally apply grease to the parts in contact with fluid.
● Select from 2 piping directions.
● Welded structure for sensor units and fitting parts

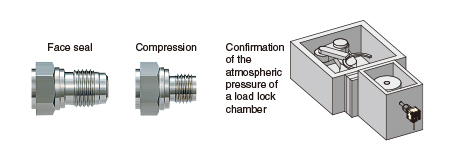

Select from a face seal or compression fitting.

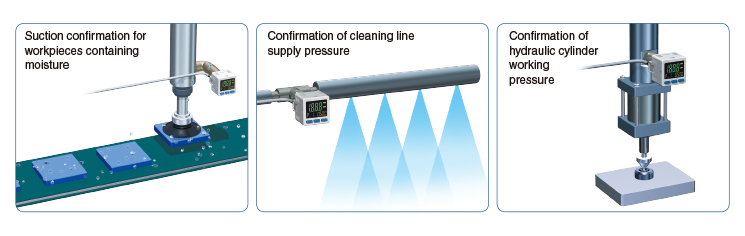

● Applicable Fluid Examples

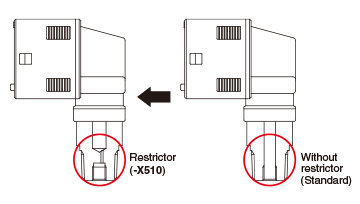

■Made to Order
● Parts in contact with fluid:stainless Steel 316L
This pressure switch has increased corrosion resistance due to the use of stainless steel 316L for the parts in contact with fluid (pressure sensor and fitting).
