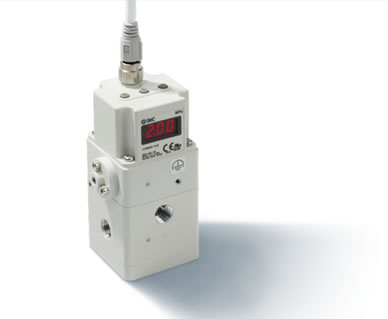

3.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVH

Description

・Maximum supply pressure: 3.0 MPa
・Set pressure range: 0.2 to 2.0 MPa
 Stepless control of air pressure up to 2.0 MPa
・Stability: ±1% F.S. or less
・Power consumption: 3 W or less
・Maximum flow rate: 3,000 L/min (ANR)
・Wetted parts: Fluorine grease

Other Data :
> Safety Instructions

> F.R.L. Units/Precautions
> Series Variations/Pressure Control Equipment
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Technical Data

Features

■Maximum supply pressure:3.0 MPa
■Set pressure range: 0.2 to 2.0 MPa

Stepless control of air pressure up to 2.0 MPa


■Stability: ±1% F.S.*or less

* The value is confined to the static state. Pressure may fluctuate when air is consumed at the output side.

■Power consumption: 3 W or less
■Maximum flow rate: 3000 L / min (ANR)*

* Supply pressure: 3.0 MPa, Set pressure: 1.0 MPa

■Parts in contact with fluid: Fluorine grease
■Pipe thread type: Rc, NPT, G
■Weight: Approx. 630 g*

* Without options

■Digital pressure display
■Linearity: ±1% F.S. or less
■Hysteresis: 1% F.S. or less

■Repeatability: ±1% F.S. or less

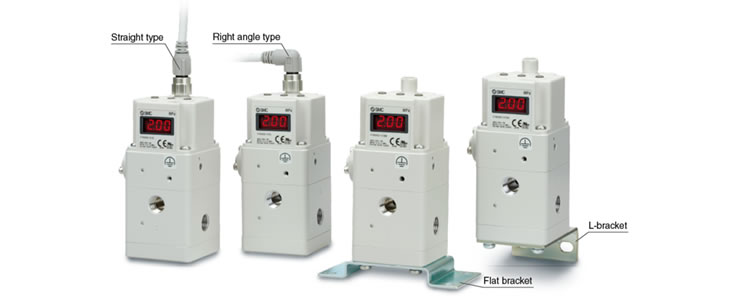

■Connector, Bracket

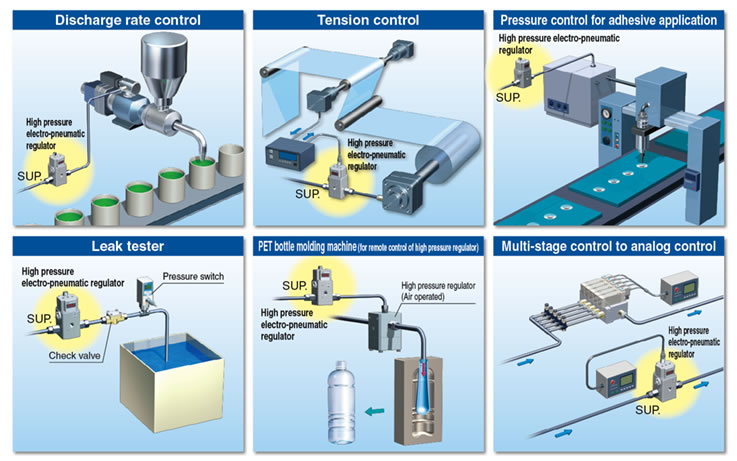

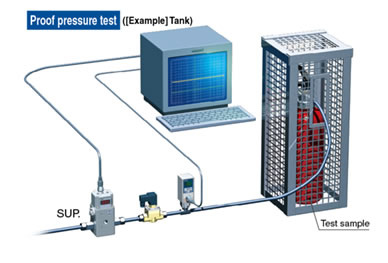

■Application Examples

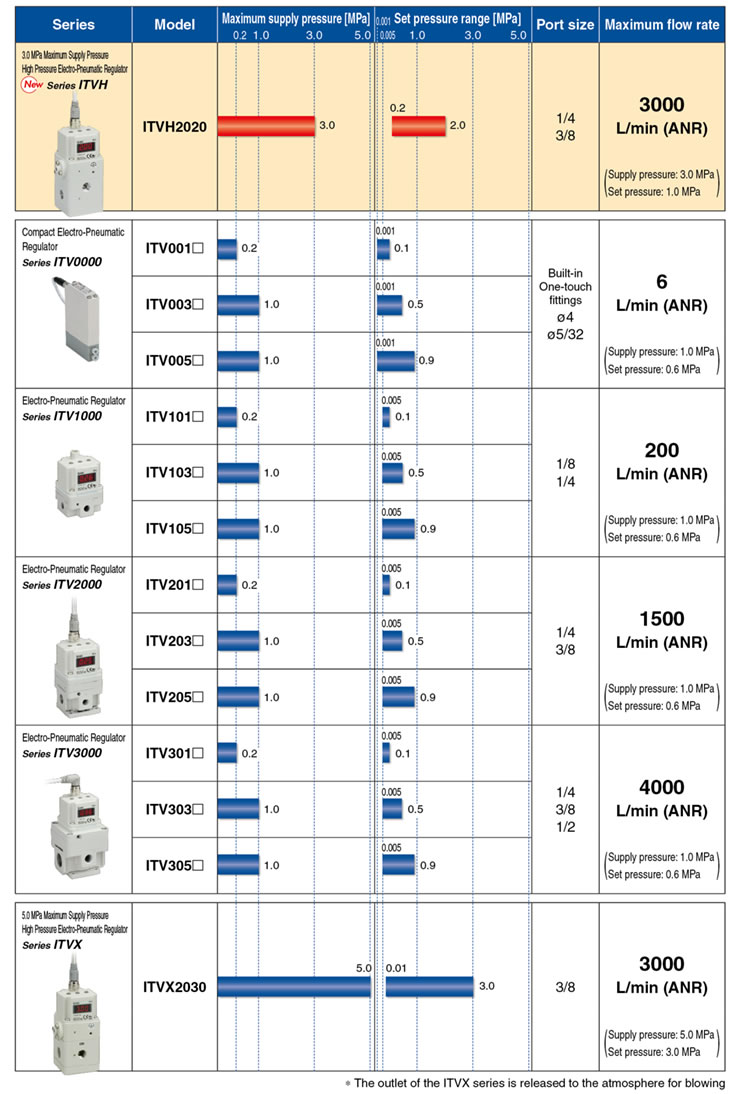

■Variation Map
