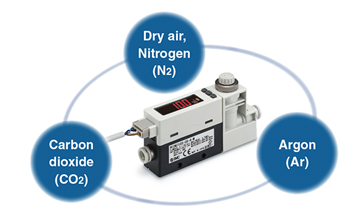

・Dry air, N2, Ar, CO2

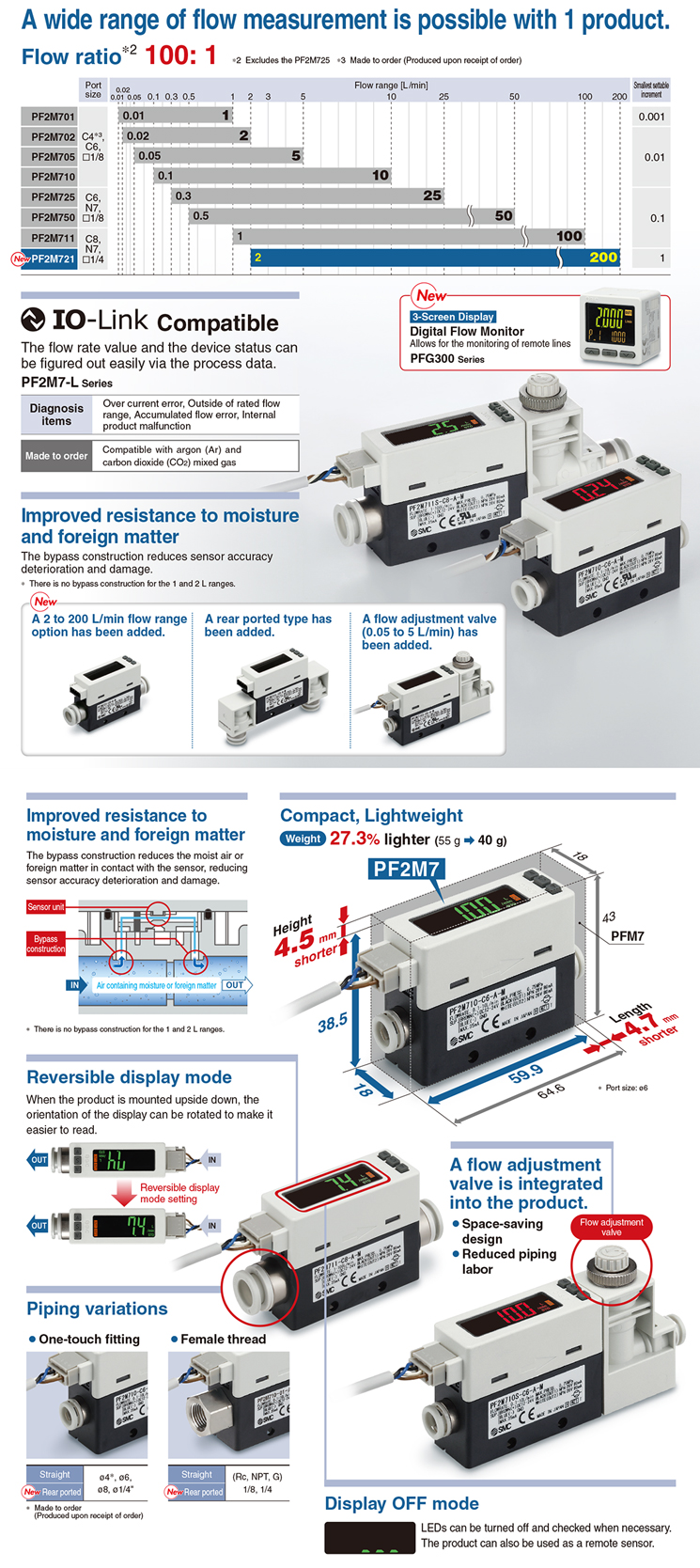

・A wide range of flow measurement is possible with 1 product.
Flow ratio: 100:1, Smallest settable increment: 0.01 L/min
・Improved resistance to moisture and foreign matter
Weight: 27.3% lighter (55 g → 40 g)
・Low current consumption: 35 mA or less
■Delay time setting
Can be set between 0 and 60 s
The delay time can be set according to the application.
■Selectable analog output function
1 to 5 V or 0 to 10 V can be selected.
■Low current consumption: 35 mA＊ or less
＊ PFM7: 55 mA or less
■Power supply voltage: 12 to 24 V
* For the IO-Link device: 18 to 30 V
