For High Precision Positioning – Pin Shift Cylinder CKQG-X2370/CKQP-X2371

Description

・High Precision: Rod end deflection of ±0.1 mm or less
・Position reproducibility
・Pins for positioning the workpiece provided by the customer
　can be directly mounted.
・Built-in coil scraper
・Reduces labor time by integrating the cylinder and guide
・Magnetic field resistant auto switches are mountable.

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: , ,

Technical Data

Features

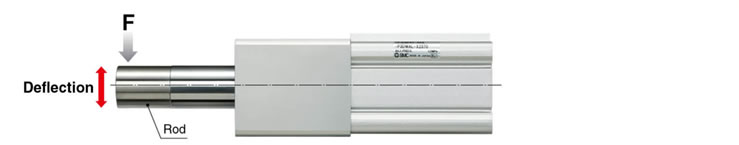

■High Precision Rod end Deflection ±0.1 mm or less

Rod end deflection of ±0.1 mm or less is achieved when a load is applied to the rod at its extension end.

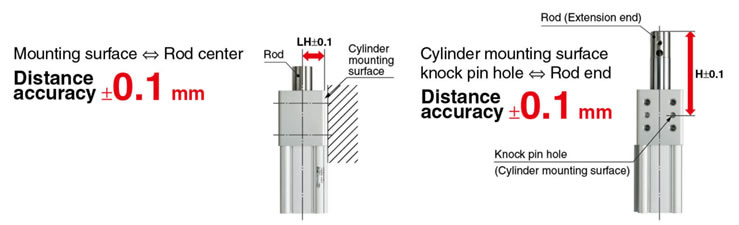

■Position Reproducibility

Mounting surface ⇔ Rod center Distance accuracy ±0.1 mm
Cylinder mounting surface knock pin hole ⇔ Rod end Distance accuracy ±0.1 mm

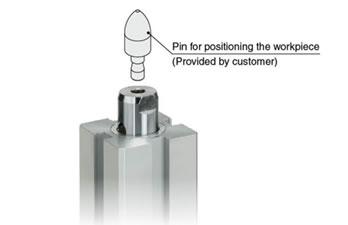

■Pin for positioning the workpiece provided by the customer can be directly mounted.

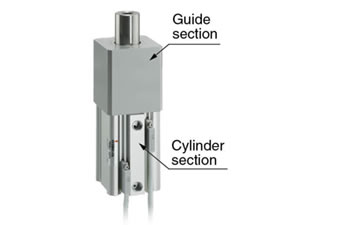

■ Reduces labor time by integrating the cylinder and guide.

  • Reduction in design labor
  • Reduction in assembly labor

■Built-in coil scraper

Removes welding spatters, foreign matter, cutting chips, etc. sticking to the piston rod.

■Magnetic field resistant auto switches are mountable.
