Compact Guide Cylinder/Wide Type MGPW

Description

・The guide pitch has been doubled.
・The allowable rotational torque of the plate has been improved.
　The non-rotating accuracy of the plate has been improved.
・Equivalent weight to the basic type

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Made to Order Common Specifications

Download Catalogs

Categories: , ,

Technical Data

Features

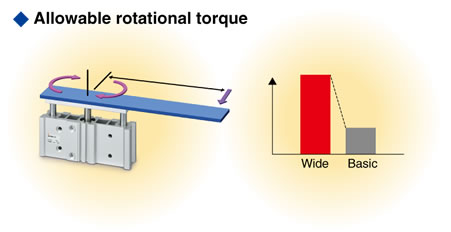

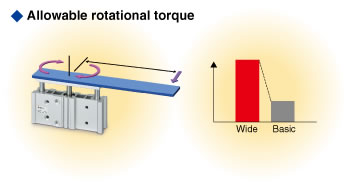

■Doubling the guide pitch

Trebles the allowable plate rotational torque.

2.5N・m←0.75N・m (For MGPWM20-50)

  • The allowable rotational torque of the plate is improved by up to 3 times by making the guide pitch twice the basic type and placing the guide components at an optimal location.
  • Suitable when used as a pusher or lifter.

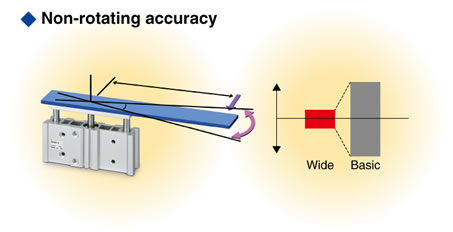

Non-rotating accuracy of the plate improved

±0.03°(Wide type for MGPWL20)±0.09° (Basic type for MGPL20）

  • The plate non-rotating accuracy is improved due to the increase in guide pitch.

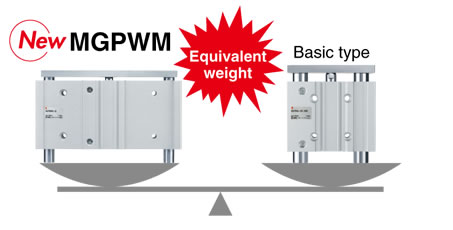

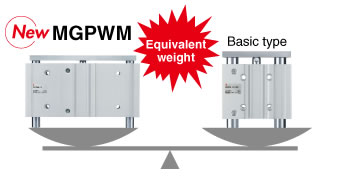

■Equivalent weight to the basic type

Although the volume is 170% more than the MGP basic type, the weight of the MGP wide type is equivalent to the basic type by changing the plate material and optimizing the component dimensions.

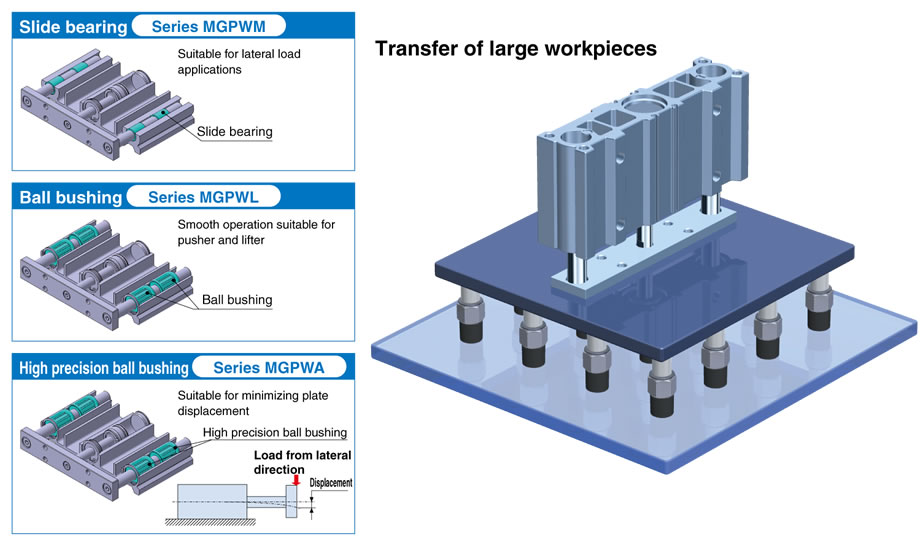

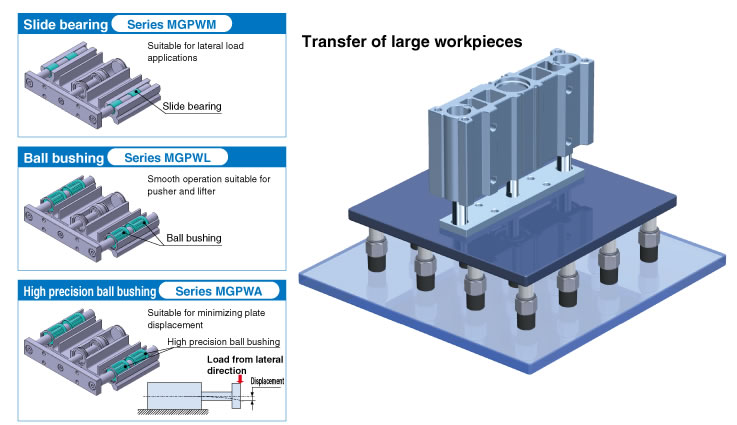

■3 bearing types are available for various applications

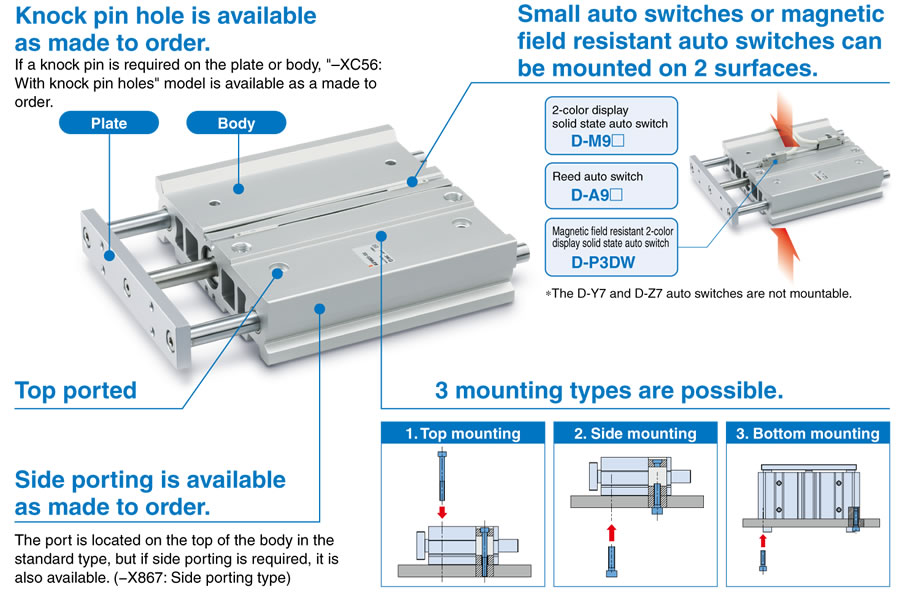

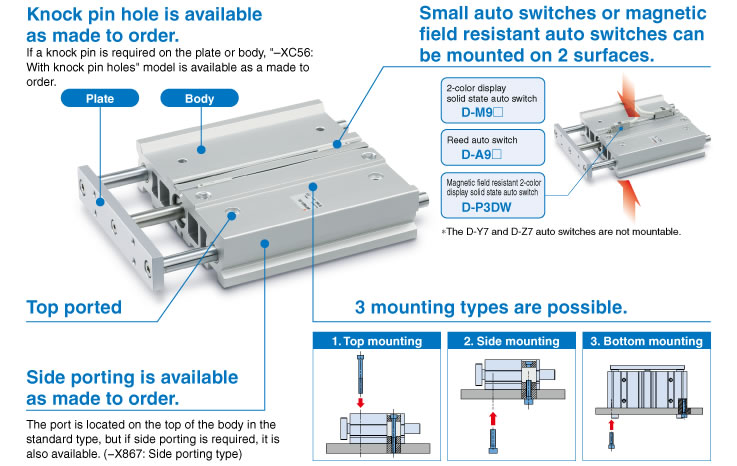

■Other Features

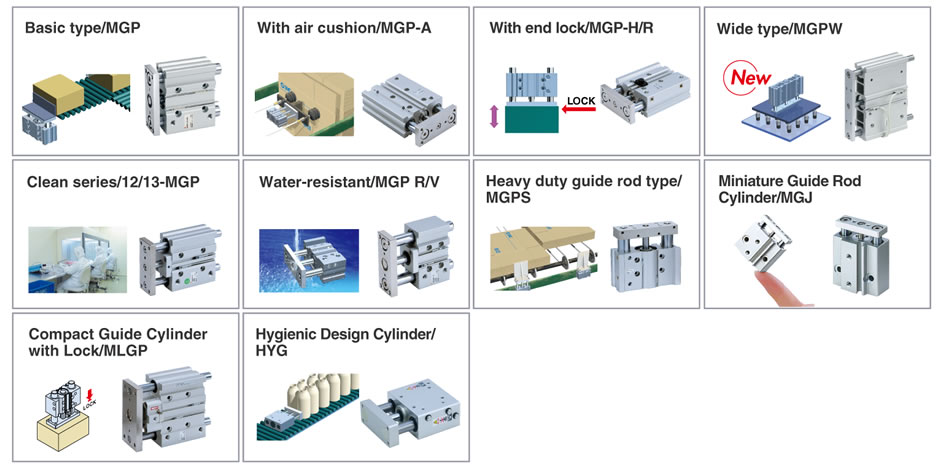

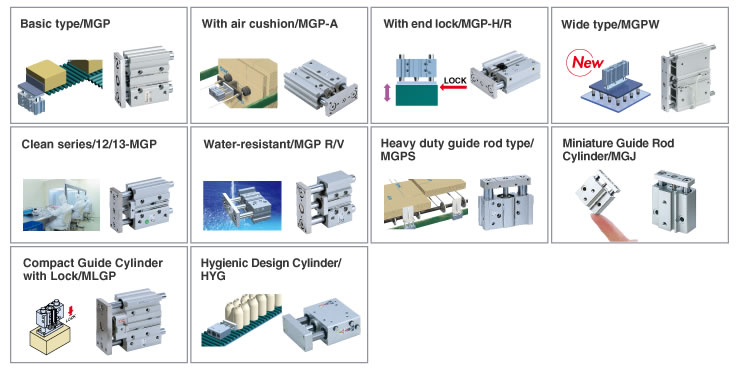

■Compact Guide Cylinders, Series Variations
